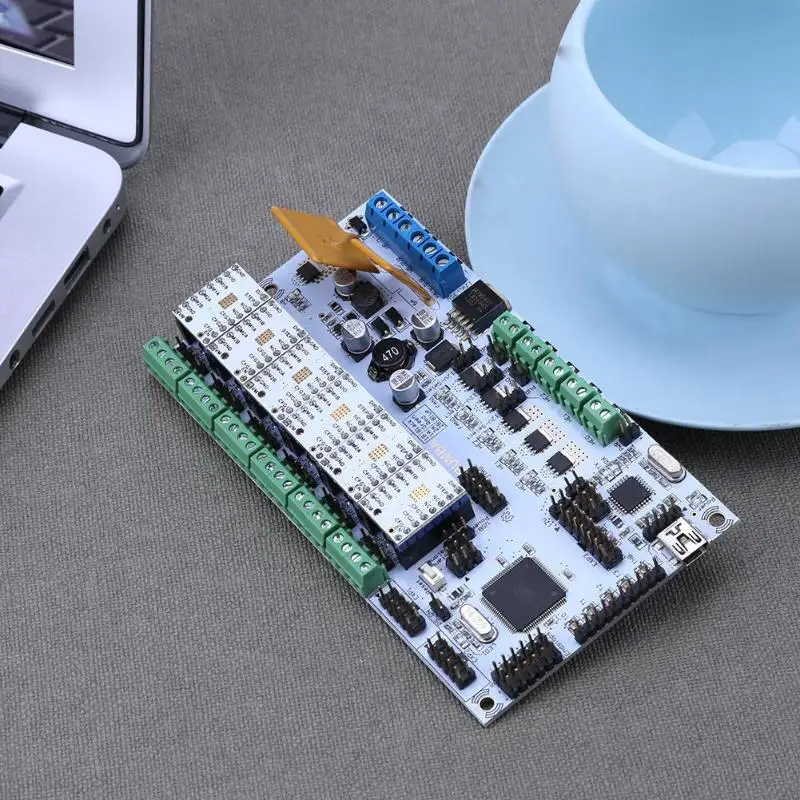

3D Printer Start Mother Board Rumba Board Stepper Driver + 6pcs Heatsink

Descriptions:

The electronic part is the brain of the 3D printer, and all the movements are controlled by the electronic part. The electronic part uses an integrated 3D printer control board based on the Mega2560 AVR processor. This circuit board is designed for CNC machining machines such as 3D printers, engraving machines, laser cutting machines and the like. You can use a personal computer to connect to a 3D printer or print directly from an SD card. Due to the integrated design, installation and commissioning is simple. And the use of common Arduino IDE as a development software, it is easy to upgrade firmware and configurate parameter.

MKS TMC2100 stepper motor drive board ultra-quiet drive StepStick is compatible with Arduino. Under high operating temperature without fan, when current is about 0.5A, the operating temperature will be 70 degrees; while when current is 1A, the operating temperature will be more than 150 degree. There may be step out, Do a good job of cooling, and 0.5A working current is strongly recommended.

Features:
1. PWM DC output (heating tube, fan, etc.)
6 outputs (1 high current, 3 middle current, and 2 small current);
Drive with a high-performance and low-resistance Mos tube;
Each output has a LED indication;
2. Power supply
Dual-way power supply design to avoid mutual impact (12V power supply is strongly recommended)
The hot bed section supports 11A current, 12V voltage;
Other parts of the circuit, 5A, 12V
In order to reduce the high temperature generated by the high current on the Mega Controller board, it is recommended to add a 12V cooling fan.

Using the same CPU with Arduino Mega, Atmega2560 as the master chip, with high-performance USB chip Atmega16U2, can be compatible with all Ramps related firmware
5 temperature sensor interface inputs
All pins are derived, easy to do more features to expand
With LCD expansion interface, you can connect the Chinese LCD screen SD expansion version, to achieve offline printing (support 2004 and 12864)
The steering gear extends the interface for easy addition of auto leveling
Support 6 A4988 16 subdivision driver board
PWM output (heating tube, fan, etc.): 6-way output (1 large current, 3-way current, 2 small current) using high-performance low-conduction resistance MOS tube drive, each output LED as an indication
Power supply part: power input for the 12V-35V, dual power supply design, effectively avoid mutual influence, the hot bed part of the support 11A current, 12V, other parts of the circuit, 5A, 12V, in order to reduce the Mega Controller board high current generated high temperature, Increase 12V cooling fan
The controller board firmware will feature the most widely used Marlin, ease to use with functionality and stability;

Specifications:
Model: Rumba
Type: main control board
Material: PCB
Chip: Atmega2560
Supported print head: 3 print heads
Voltage: 12V
Supported driver module: 4988
Compiling environment: Arduino IDE

1 x Control Board

6 x Heat Sink
1 x Screwdriver
1 x Data Cable
